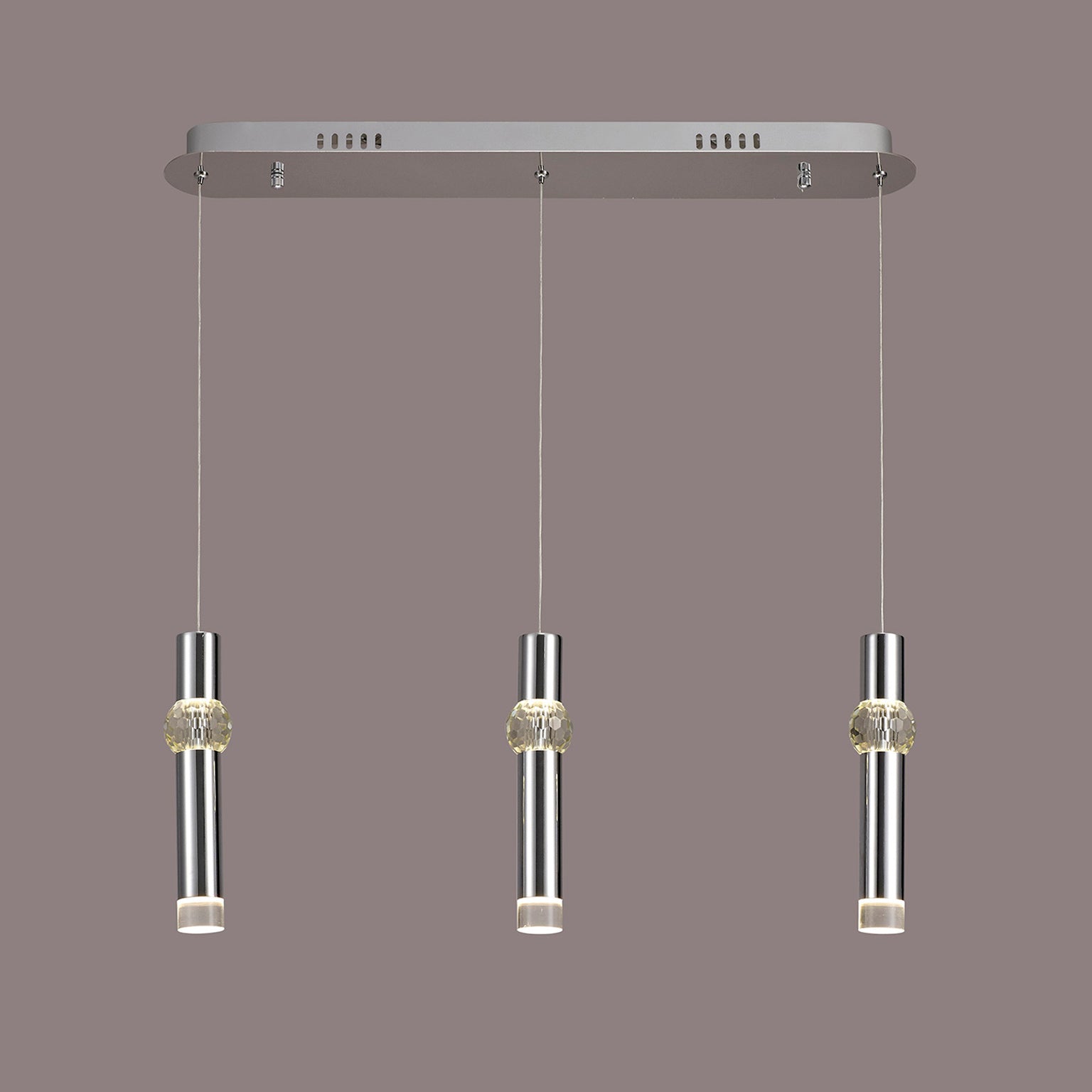

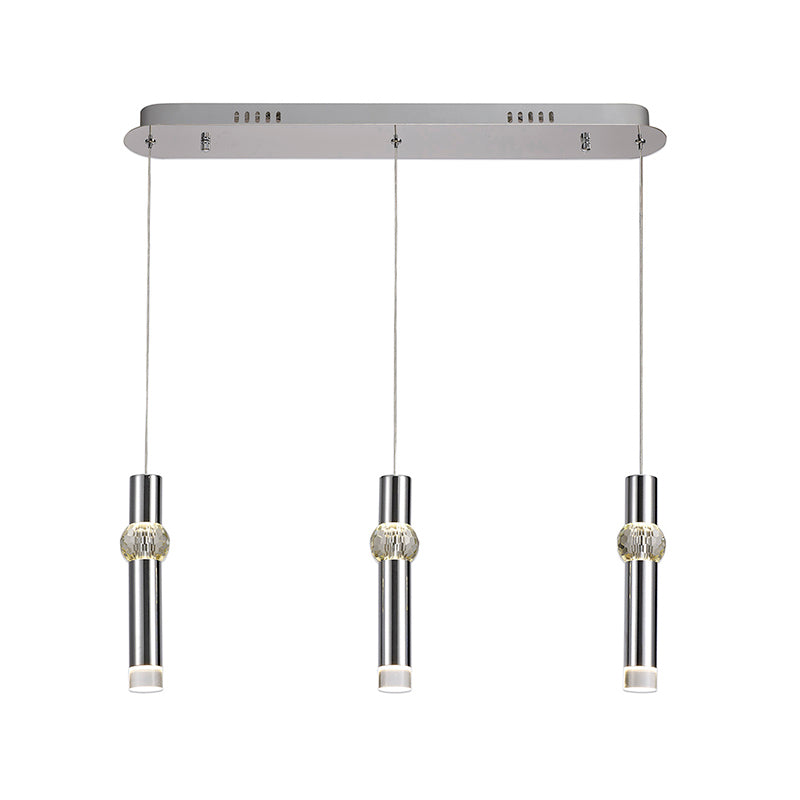

3 Light Linear Pendant, 3 x 5W LED, Polished Chrome - 3yrs Warranty (1230LIA89A)

  • £380.23
    Unit price per
Tax included. Shipping calculated at checkout.

Matching products are available; type 1230LIA in the search box at the top of the screen to view the whole range.

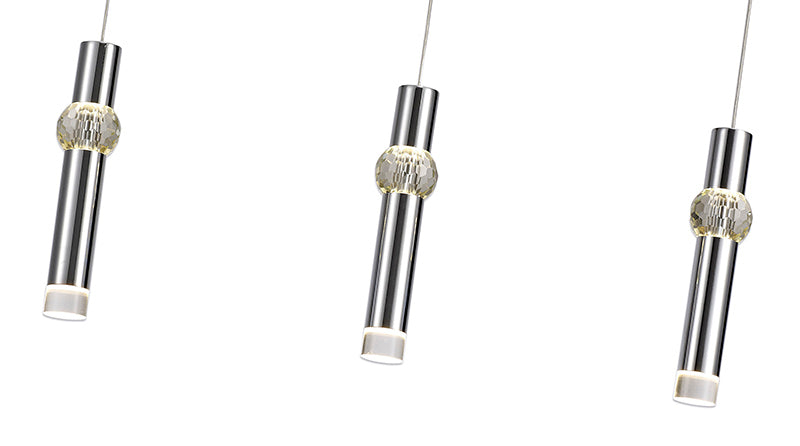

This range offers a sleek and modern design that creates a futuristic aura with its slim polished chrome tubes. The integral LEDs emit a warm light filtered through the clear acrylic section at the bottom of each cylinder and the substantial spherical crystal sphere which produces spectral patterns with its faceted cut. Available as a single pendant, 3 light linear or 3 light round, there are ample applications that this range would be perfect for.

  • Colour Finish Polished Chrome
  • Item Nett Weight (kg) 3.9kg

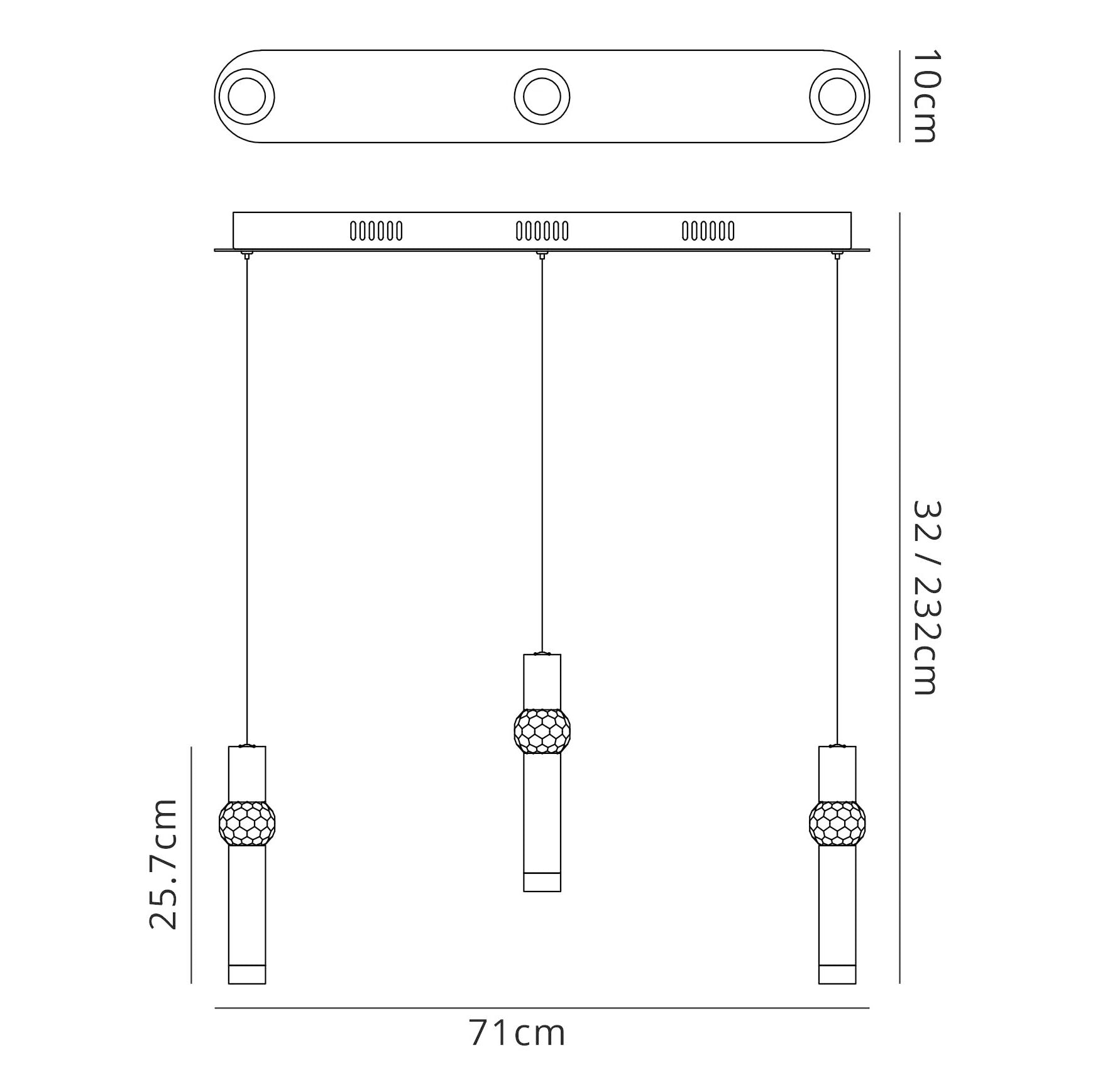

  • Length (mm) 710mm
  • Width (mm) 100mm
  • Minimum Drop (mm) 320mm
  • Maximum Drop (mm) 2320mm
  • Body Height (mm) 257mm
  • Materials Used Iron, Stainless Steel, Acrylic
  • Energy Class A++ to A
  • No: of Lamp 3
  • Lamp Socket Integral LED
  • Recommended Lamp Integral LED
  • Max Wattage Lamp (W) 5W
  • Lamp Included Yes - Integrated
  • Type of Lamp Included Integrated LED
  • Colour Temperature (K) 3000K Warm White ( ±5%)
  • Average Life of LED (hrs) 30000hrs
  • Type of LED SMD
  • Lumens Per LED 23.3lm
  • Beam Angle (°) 120°
  • System Flux (lm) 304lm ( ±5%)
  • CRI >80
  • Driver Included Yes - Internal
  • Type of Driver Constant Voltage
  • Power Factor (?) >0.48 ( ±5%)
  • Max. Current Output (A) 830mA
  • Min/Max. Voltage Output (V) 24V
  • Load Range (W) 19.9W
  • Ta (°C) 45°C
  • Tc (°C) 80°C
  • Voltage Required (V) 220-240V~50/60Hz
  • Protection Class Class 1 - Earth Connection Required
  • Total Power Consumption (W) 15.3W ( ±5%)
  • Input Voltage (V) 220-240V~50/60Hz
  • Dimmable No
  • Dimmer Included No
  • IP Rating IP20
  • Average Life (hrs) 30000hrs
  • Warranty (yrs) 3yrs
  • CE Yes
  • Rohs Yes
  • TUV Yes
  • EMV/EMC Yes
  • Shade Colour Clear/Frosted
  • Base Dimensions (mm) L:665mm x W:60mm x H:40mm
  • Plate Dimensions (mm) L:710mm x W:100mm x T:1.0mm
  • Bracket Dimensions (mm) L:605mm x W:27mm
  • Cable Information 2 Core 0.75mm, VDE Approved, Clear Cable
  • Shade Dimensions (mm) D:40mm, H:35mm

Please give us a call on 01422 363525 if you would like any other information.
